Patented, Easy to Setup, Accurate and Reliable
X-Series™ Laser Shaft Alignment Technology
X-Series™ Laser Shaft Alignment Systems from Hamar Laser represents the next generation of laser shaft alignment, built on patented innovations, engineered for fast setups, and trusted for repeatable precision in every environment.
Whether you’re aligning simple machines or complex systems, X-Series™ delivers unmatched accuracy and ease of use to reduce downtime, increase reliability, and protect your equipment investment.
Patented Technology That Delivers Results
At the core of every X-Series™ system is Dual-Fan™ or Dual-Beam™, super-linear PSD laser technology, patented systems that eliminate rough alignment steps and dramatically improves setup speed and measurement repeatability. With no need for pre-alignment rough-ins, X-Series™ locks onto alignment values in seconds and holds them stable throughout.
Dual-Fan™/Dual-Beam™ Technology – Provides high angular resolution and eliminates the need to rough-in the moveable machine.
Super-Linear PSDs – Delivers up to 10x the accuracy of typical alignment systems.
Multi-Optional Mounting Brackets – Speed up installation and maintain rigidity under vibration or movement, no matter the setup.
Fast, Foolproof Setup
Designed with field technicians in mind, X-Series™ makes shaft alignment simple—even in tough conditions.
One-Person Operation – Intuitive hardware and software reduce the learning curve.
Auto-Sense™ Rotation Detection – Automatically recognizes shaft rotation direction and angle.
Compact, Rugged Laser/Target Heads – With IP67 rated heads, work in tight spaces, harsh environments, and on different shaft setups.

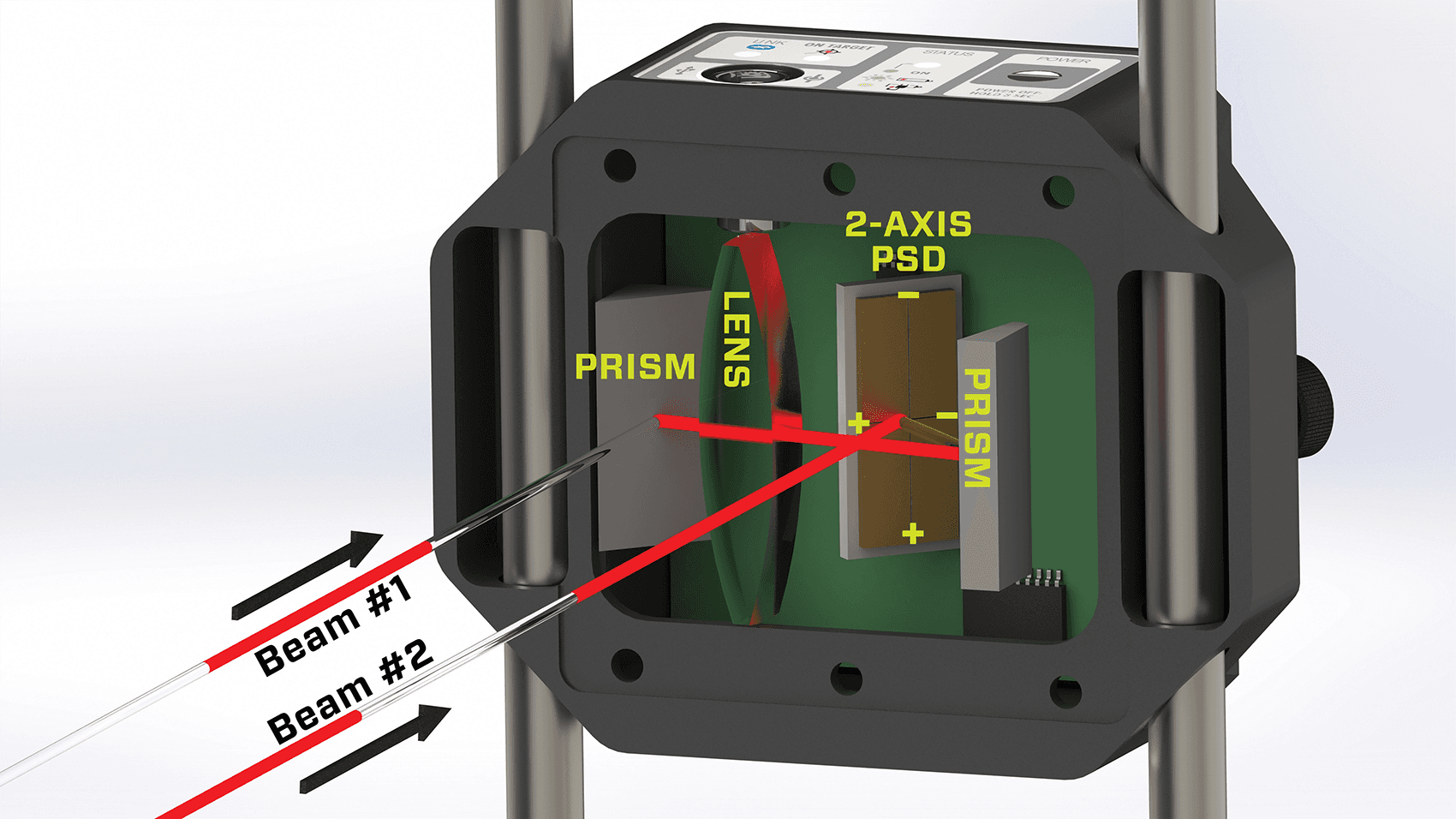

Unidirectional Dual-Beam™ Technology

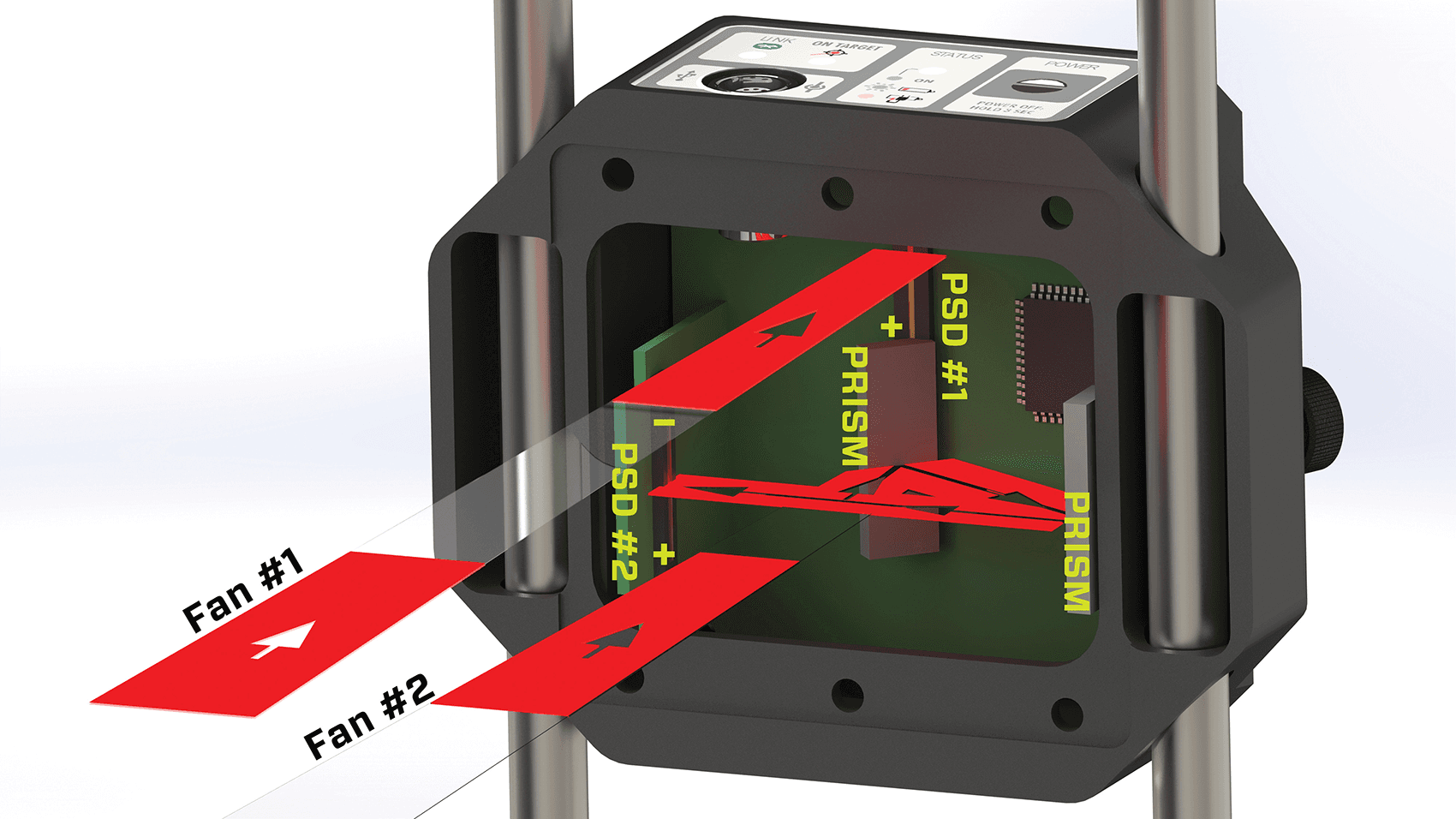

Unidirectional Dual-Fan™ Technology
Accuracy You Can Trust
True alignment success depends on repeatable, reliable measurements, and X-Series™ was built for exactly that. From its industry-leading sensor technology to intelligent software workflows, every step reinforces confidence in the result.
Duo-Plane™ Live Move Screens – Real-time, two-plane adjustments from any position
Real-Time Data Averaging – Filters out vibration and environmental noise
RPM-Based Tolerance Tables – Built-in ISO and customizable limits for any machine
Reliable Under Real-World Conditions

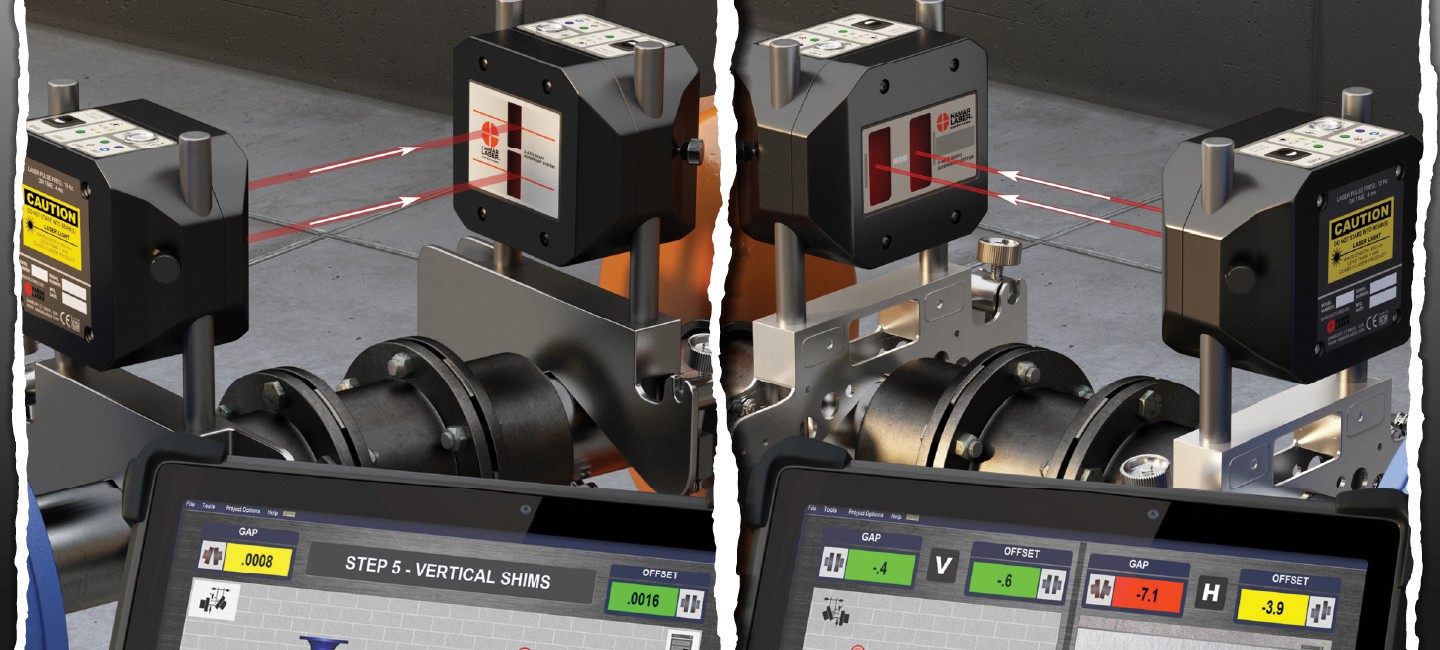

X-Series™ performs where others fall short. Whether you’re aligning indoors, outdoors, on the floor, or 40 feet in the air, our technology is rugged, reliable, and repeatable.
Works on hard to align equipment, coupled/uncoupled shafts, or limited access machines
Handles vibration, thermal growth, and soft foot diagnostics with ease
Designed for precision alignment in any industry, from power generation to food processing
Software That Powers Your Workflow

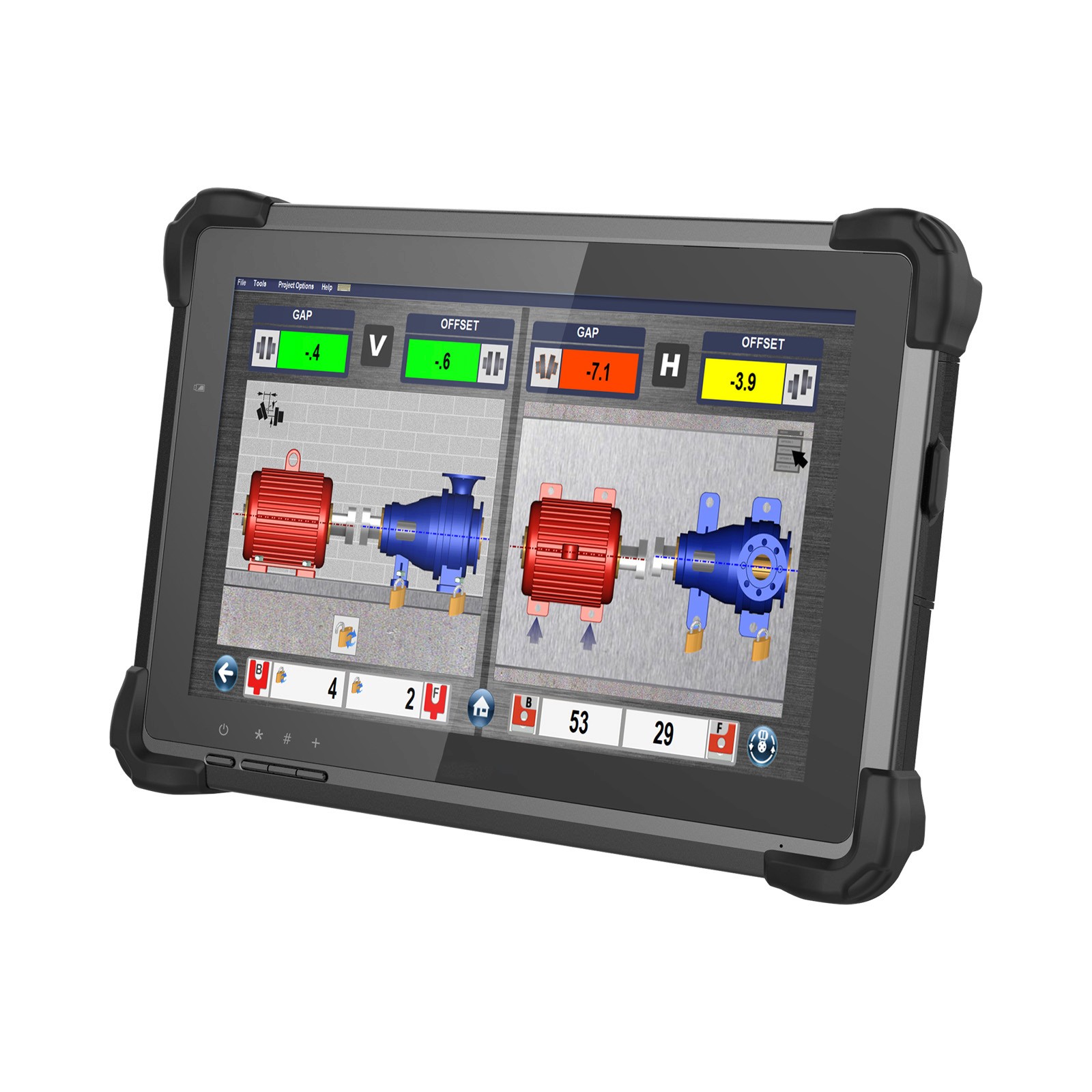

Our Couple6™ Alignment Software streamlines the process with a 5-step workflow, interactive 3D graphics, and one-button PDF reporting. Optional modules for machine trains, geometric measurement, and uncoupled alignments expand the capability without changing platforms.
Use any Windows-based tablet or Laptop
Same software for both X-Series™ and Stealth Series™
Designed for repeatability, traceability, and productivity
Your Alignment Solution, Engineered by Experts
With over 55 years of laser alignment innovation, Hamar Laser is the industry’s go-to source for reliable, high-performance alignment systems. X-Series™ reflects our ongoing Mission Statement: “To deliver the most accurate, most reliable, and most user-friendly laser shaft alignment systems on the market.”
If you're ready for alignment that works the way you do, X-Series™ is ready to perform.
Let’s Solve Your Toughest Alignment Problems
Need expert help? Reach out today.
